CERAGON

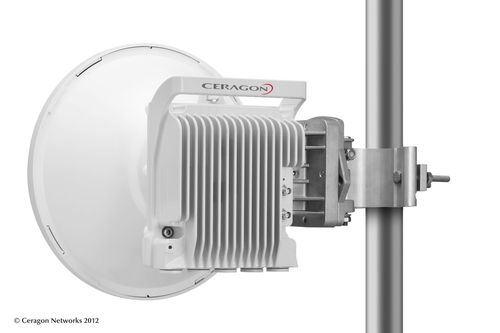

The FibeAir IP-20C is a highly versatile, compact and all-outdoor wireless backhaul node that suits any network deployment scenario, from aggregation sites to small cell backhaul, at LTE, LTE-Advanced pro and 5G mobile network, as well as any vertical application, and is designed to help you meet a wide variety of challenges throughout your network deployment.
Designed with flexibility to meet a wide variety of challenges throughout your network deployment, the IP-20C-HP enables 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz channel.
The FibeAir IP-20C operates within the entire microwave communication spectrum, offering high spectral efficiency across licensed and license-exempt microwave communications frequency bands (6-42GHz).
With its multicore technology, the FibeAir IP-20C allows you to continuously increase your operational efficiency and provide better quality of experience to your customers.

Description

Using Ceragon’s unique multicore technology you can:

  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required
  • Deliver the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – enabling 1Gbps radio capacity over a single 30MHz channel or 2Gbps over a single 60MHz
  • Deploy sites where needed, removing congested wireless backhaul constraints by doubling the reuse of microwave frequency channels and using Advanced Frequency Reuse technology embedded in the multicore technology
  • Reduce energy costs by up to 40%
  • Reduce tower or roof-top equipment footprint by 50% in dual carrier configurations

For more details-
https://www.ceragon.com/products/fibeair-ip-20c-hp

The FibeAir IP-20C-HP is a high-power, compact and all-outdoor wireless backhaul node that suits any network deployment scenario with long reach requirements, from aggregation sites to remote small cell mobile backhaul, and is designed to help you meet a wide variety of challenges throughout your network deployment.
Designed with flexibility to meet a wide variety of challenges throughout your network deployment, the IP-20C-HP enables 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz channel.
The FibeAir IP-20C-HP operates in the 6GHz and 11GHz wireless backhaul bands.
With its multicore technology, the FibeAir IP-20C-HP allows you to continuously increase your operational efficiency and provide better quality of experience to your customers.
Using Ceragon’s unique multicore technology you can:

  • Double wireless backhaul capacity via remote activation of another radio carrier with no site visits required
  • Deliver the needed wireless backhaul capacity at as little as ¼ of the spectrum otherwise needed with Ceragon’s field-proven LoS MIMO 4×4 technology – enabling 1Gbps radio capacity over a single 30MHz channel or 2Gbps over a single 60MHz
  • Deploy sites where needed, removing congested wireless backhaul constraints by doubling the reuse of microwave frequency channels and using Advanced Frequency Reuse technology embedded in the icore technology
  • Improve system gain with 35dBm Tx power
  • Reduce energy costs by up to 40%
  • Reduce tower equipment footprint by 50% in dual carrier configurations and high-power radios

The FibeAir IP-20E is an ultra-compact, high-capacity, all-outdoor wireless backhaul node that helps you meet your capacity requirements, simplify network deployment and installation, and reduce your spectrum costs. Whether your challenge is connecting high-capacity sites, overcoming microwave spectrum limitations and costs, or simply expanding your LTE or LTE-Advanced network in a metro environment or any other scenario where it is impossible to deploy high-volume, heavy-weight backhaul equipment – Ceragon’s FibeAir IP-20E allows you to achieve your business goals.

The FibeAir IP-20E allows you to continuously increase your operational efficiency and deliver a better quality of experience to your customers:

  • Provide ultra-high wireless backhaul radio capacity and spectral efficiency of up to 2.5Gbps over a 500MHz channel
  • Minimize your sites’ physical footprint with an integrated flat panel antenna – allowing you to install your equipment on congested poles and street furniture
  • Reduce your E-Band spectrum fees by allowing you to acquire just the right amount of spectrum you need by supporting as low as 62.5MHz channel spacing
  • Allow enhancement of existing microwave links with E-Band carrier-bonding (multiband)
  • For more details-
    https://www.ceragon.com/products/fibeair-ip-20e
