GTR-8000

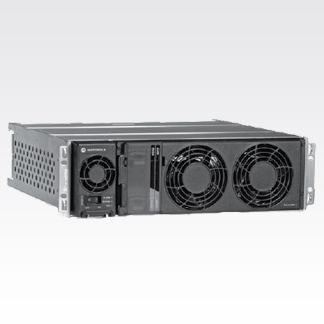

Meet today’s demand for IP networks and P25 radio operations with the high performance GTR 8000 Base Radio / Expandable Site Subsystem.

The GTR 8000 offers software-based upgrades and migrations, no single point of failure, hot swap hardware, front access serviceability, and integrated battery charging. Its state of the art compact design enables everything from basic Analog Conventional to advanced P25 TDMA Trunking on the same hardware.

The GTR 8000 ships tuned from the factory for quick and easy deployment. The reliability and serviceability of Motorola’s full-featured flagship solution makes it ideal for mission critical ASTRO 25 systems.

View More Details

Categories: ,

Description

Features

Ease of Installation

Simplified dash mount design is quick and easy to install

RFID Asset Tracking

12 character RF ID asset tracking provides a convenient method of obtaining valuable asset tracking information without having to uninstall the radio.

P25 TDMA

Twice the voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure

Integrated GPS

Integrated GPS receiver can transmit the outdoor location of a vehicle to a map-based location application

Encryption

AES encryption provides secure voice and data communications

Intelligent Lighting

Intelligent lighting provides information at a glance by using color to notify the user of the radio mode, potential emergencies, or specific events

Radio Profiles

Radios can be configured with multiple user-selected or automated operating behaviors such as audio level, lighting and tones

Text Messaging

Efficiently send and receive free-form or canned text messages to and from subscribers or dispatch operators

Unified Call List

Consolidates all call lists underneath one unified list

Voice Announcement

Audible, pre-recorded voice file provides a description of the selected channel or zone

Programming over Project 25 (POP25)

Motorola’s POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field

Rugged Durability

Meets IP56 water-intrusion ratings for driving rain giving you the confidence that your mobile will continue performing even if exposed to water

Specification Sheet

APX 2500 Specifications Sheet

APX™ Project 25 Radio Accessories Catalog

Microphone Characteristics

Bluetooth capable

Yes

Performance Characteristics

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/performance-characteristics
    Frequency range

    700/800 (764-870 MHz) VHF (136-174 MHz)
    UHF R1 (380-470 MHz) UHF R2 (420 – 520 MHz)

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/performance-characteristics
    Channel spacing

    6.25, 12.5, 25

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/performance-characteristics
    Power levels

    10-35 watts 700/800 MHz, 25-110 watts VHF

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/performance-characteristics
    Encryption

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/performance-characteristics
    Encryption type Algorithms

    AES, Advanced Digital Privacy (ADP)

Physical Characteristics

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/physical-characteristics
    Dimensions H x W x D

    2.0 x 7.0 x 9.6 inches

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/physical-characteristics
    Configurations

    Dash Mount

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/physical-characteristics
    Weight

    7 lbs.

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/physical-characteristics
    Display

    Alphanumeric

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/physical-characteristics
    Built-in speaker

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/physical-characteristics
    Available option board

    Yes

Radio Features

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Channels

    512

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Noise reduction software

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Voice message

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Integrated voice and data

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    GPS capable

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Text messaging capable

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Advanced software features

    Over the Air Programming (OTAP)

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Programmable buttons

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features
    Programmable buttons

    Yes

Technology

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features/technology
    Digital technology

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features/technology
    Analog technology

    Yes

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/radio-features/technology
    System type

    Conventional, SmartZone trunking, SMARTNET trunking, X2 TDMA

User Environment

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/user-environment
    Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/user-environment
    Intrinsically safe

    No

  • /etc/tags/msi/specifications/product-categories/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/two-way-radios/mobile-radios/government-and-public-safety-mobile-radios/user-environment
    IP standards

    IP56
